Vacuum Toilet System
Marine Pollution Prevention Equipment
SKMARINTEC CO., LTD. a leader in marine pollution prevention equipment pursuing BLUE OCEAN
3EASY SYSTEM
-
01
EASY INSTALLATION
An disassembly assembly method capable of quickly removing and installing old or defective products installed on existing ships
-
02
EASY OPERATION
Intuitive touchscreen OS adoptionEasy operation and management
-
03
EASY MAINTENANCE
Convenient maintenance with no sludge and no clogging of pipes with a patented Auto Back Flushing method
Vacuum Toilet System

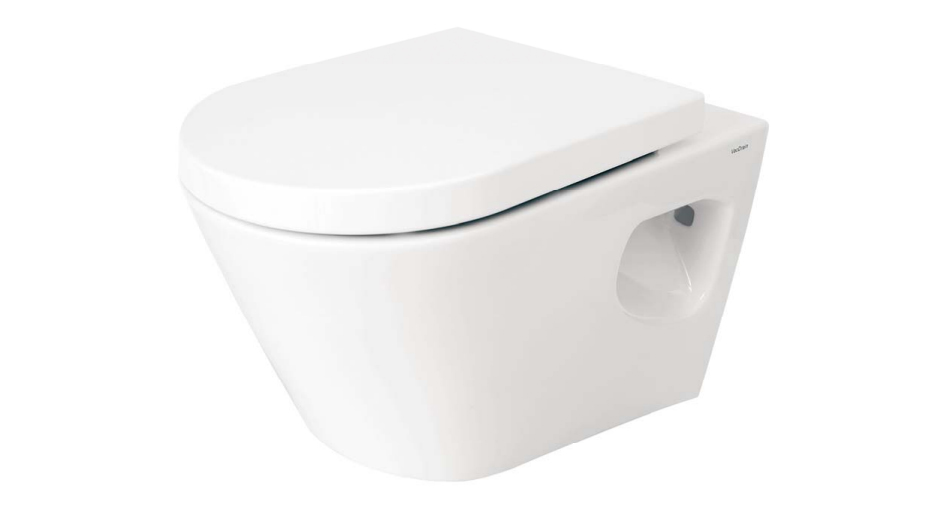

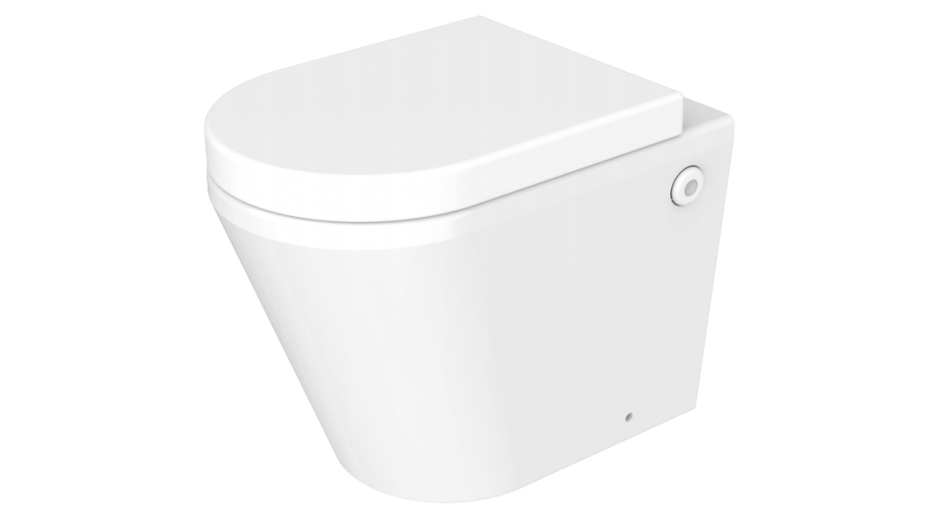

WT-996 (Wall mount toilet)
| Outside dimensions | 365 x 575 x 370 (W x L x H) |
|---|---|
| Bowl material | Vitreous china |
| Seat & cover | Slient Polypropylene & Polypropylene |
| Discharge outlet | DN40 |
| Hose | Water supply : G 1/2', flexible hose |
| Water pressure | 200~1000kpa |
| Operating vacuum | -30~-60kpa |
| Water consumption | 1.5L/flush (adjustable) |
| Air consumption | 60L/flush |
| Net Weight | 22kg |

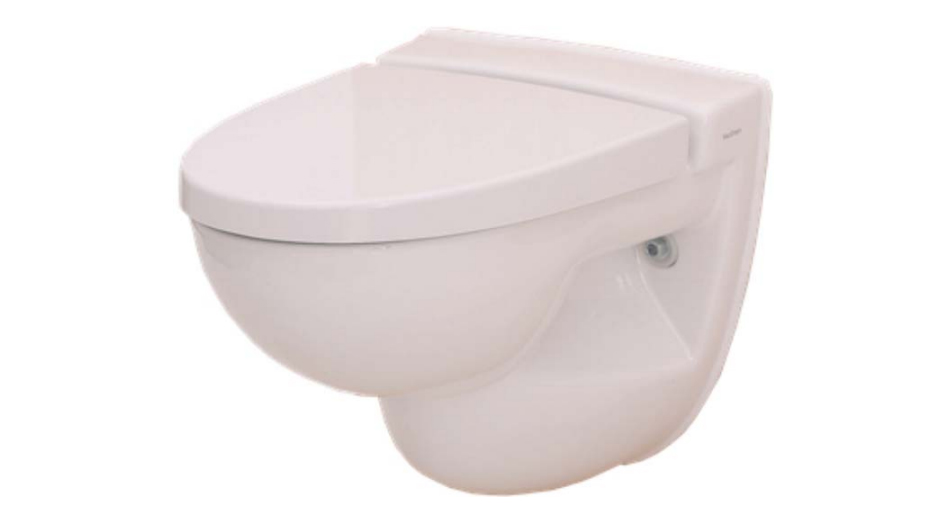

WT-7230 (Wall mount toilet)
| Outside dimensions | 365 x 550 x 375 (W x L x H) |
|---|---|
| Bowl material | Vitreous china |
| Seat & cover | Slient Polypropylene & Polypropylene |
| Discharge outlet | DN40 |
| Hose | Water supply : G 1/2', flexible hose |
| Water pressure | 200~1000kpa |
| Operating vacuum | -30~-60kpa |
| Water consumption | 1.5L/flush (adjustable) |
| Air consumption | 60L/flush |
| Net Weight | 22kg |

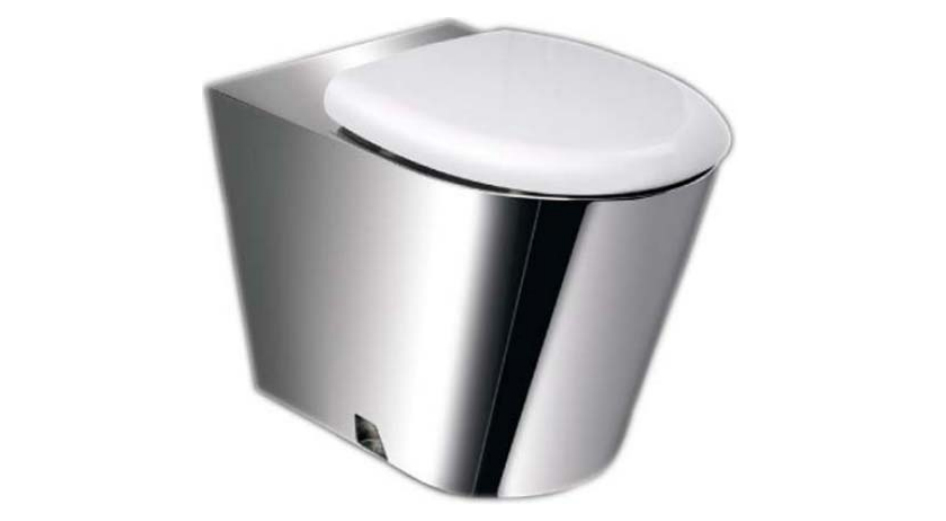

WT-7007 (Wall mount toilet)
| Outside dimensions | 355 x 580 x 330 (W x L x H) |
|---|---|
| Bowl material | Stainless steel 316 |
| Seat & cover | Slient Polypropylene & Polypropylene |
| Discharge outlet | DN40 |
| Hose | Water supply : G 1/2', ºe xible hose |
| Water pressure | 200~1000kpa |
| Operating vacuum | -30~-60kpa |
| Water consumption | 1.5L/flush (adjustable) |
| Air consumption | 60L/ºush |
| Net Weight | 13kg |

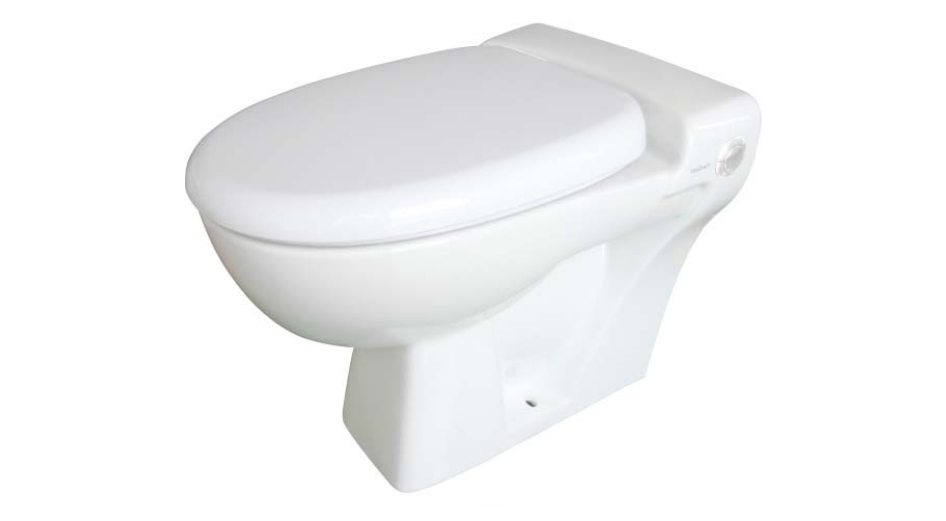

FT-1019 (Floor mount toilet)
| Outside dimensions | 355 x 545 x 465 (W x L x H) |
|---|---|
| Bowl material | Vitreous china |
| Seat & cover | Slient Polypropylene & Polypropylene |
| Discharge outlet | DN40 |
| Hose | Water supply : G 1/2', flexible hose |
| Water pressure | 200~1000kpa |
| Operating vacuum | -30~-60kpa |
| Water consumption | 1.5L/Push (adjustable) |
| Air consumption | 60L/ºush |
| Net Weight | 23kg |
FT-1030 (Floor mount toilet)
| Outside dimensions | 360 x 560 x 455 (W x L x H) |
|---|---|
| Bowl material | Vitreous china |
| Seat & cover | Slient Polypropylene & Polypropylene |
| Discharge outlet | DN40 |
| Hose | Water supply : G 1/2', flexible hose |
| Water pressure | 200~1000kpa |
| Operating vacuum | -30~-60kpa |
| Water consumption | 1.5L/Push (adjustable) |
| Air consumption | 60L/ºush |
| Net Weight | 30kg |

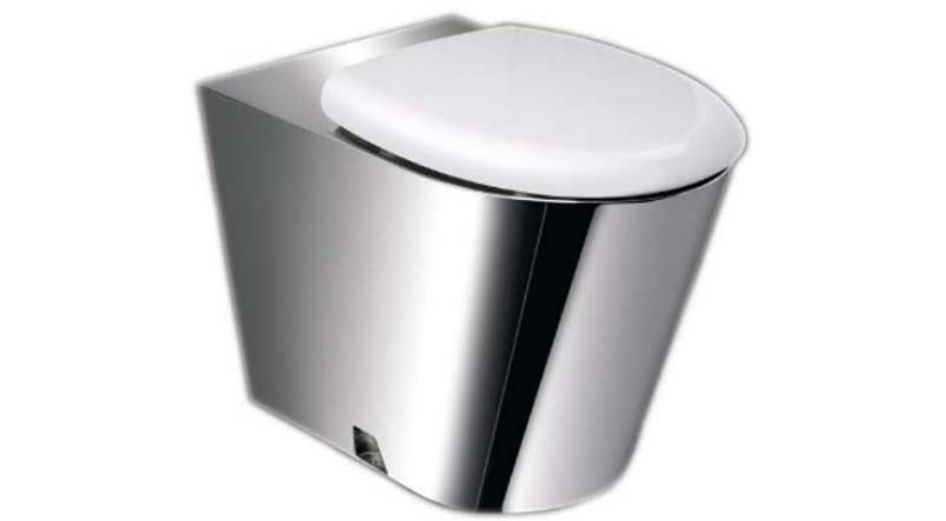

FT-7013/4 (Floor mount toilet)
| Outside dimensions | 355 x 580 x 400 (W x L x H) |
|---|---|
| Bowl material | Stainless steel 316 |
| Seat & cover | Slient Polypropylene & Polypropylene |
| Discharge outlet | DN40 |
| Hose | Water supply : G 1/2', ºe xible hose |
| Water pressure | 200~1000kpa |
| Operating vacuum | -30~-60kpa |
| Water consumption | 1.5L/Push (adjustable) |
| Air consumption | 60L/ºush |
| Net Weight | 13kg |

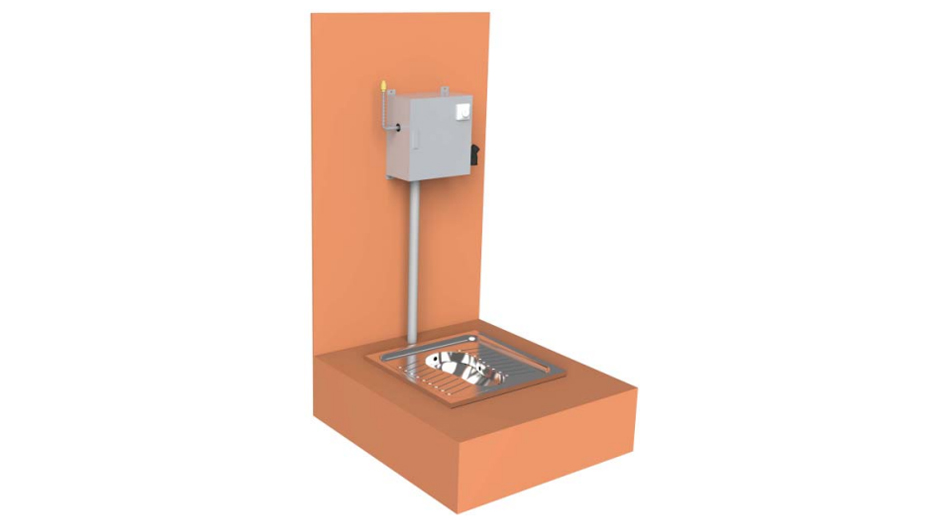

ST-9315(Squatting toilet)
| Outside dimensions | 700 x 700 (W x L) |
|---|---|
| Bowl material | Stainless steel |
| Pneumatic push button | ABS, White |
| Discharge outlet | DN40 |
| Hose | Water supply : G 1/2', Flexible hose |
| Water pressure | 200~1000kpa |
| Operating vacuum | -30~-60kpa |
| Water consumption | 1.5L/Push (adjustable) |
| Air consumption | 60L/Flush |
| Net Weight | 12kg |

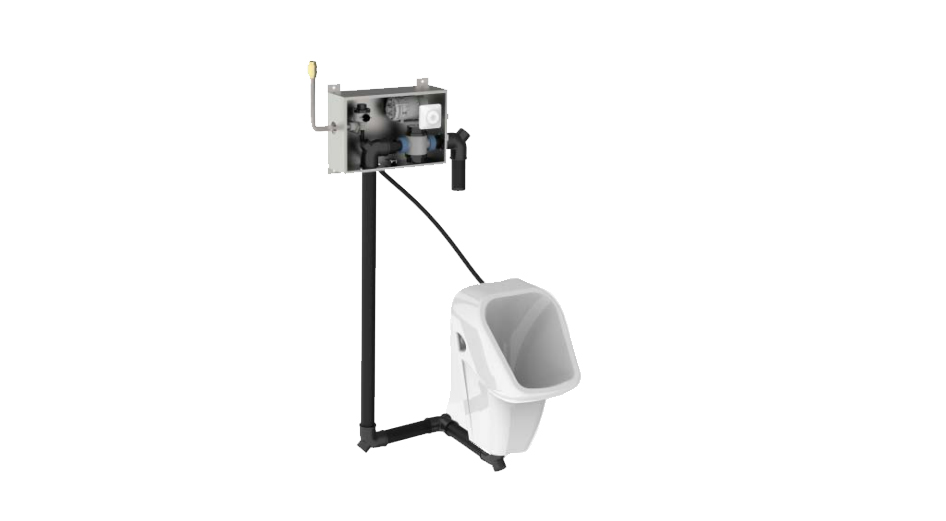

UR-3701(Vacuum Urinal)
| Materials | Urinal : White vitreous china |
|---|---|
| Size | Urinal : L x W x H : 345 x 300 x 645mm |
| Operating data | Water pressure : 200...1000kpa |
| Operating Vacuum : -30...-60kpa | |
| Water consumption : 1 litre / flush (Adjustable) | |
| Air consumption : 60 litres/flush | |
| Connections | Urinal water inlet : φ30 |
| Urinal outlet : φ50 | |
| Flushing valve water inlet : G1/2" | |
| Flushing valve water outlet : φ15 | |
| Net Weight | Urinal net weight : 10kg |

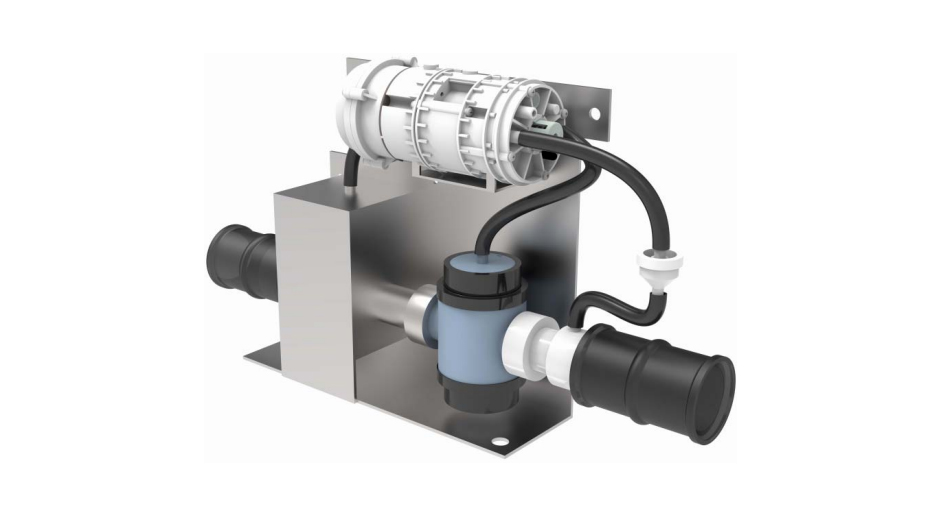

Mini type
| Materials | Tank : Stainless Steel 316 |
|---|---|
| Pipe : PVC | |
| Operating Data | Operating vacuum : -30...-60kPa |
| Minimum operating vacuum : -25kPa | |
| Capacity | -50kPa : 2.00L/s; -30 kPa : 1.20 L/s |
| Connections | Outlet/vacuum line : To pipe DN40 |
| Inlet/gravity line : to pipe DN40 | |
| Net Weight | 3.5kg |

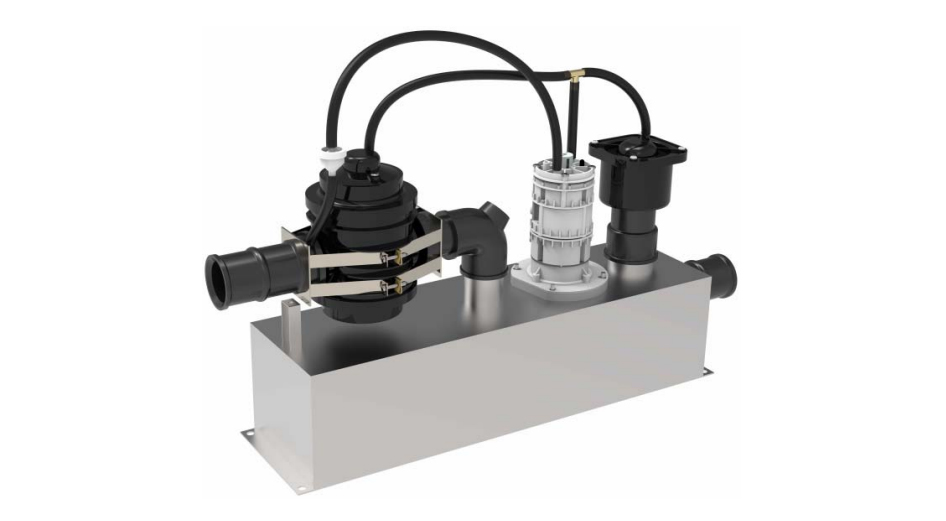

7L type
| Materials | Tank : Stainless Steel 316 |
|---|---|
| Pipe : PVC | |
| Operating Data | Operating vacuum : -30...-60kPa |
| Minimum operating vacuum : -25kPa | |
| Capacity | -50kPa : 2.00L/s; -30 kPa : 1.20 L/s |
| Connections | Outlet/vacuum line : To pipe DN40 |
| Inlet/gravity line : to pipe DN40 | |
| Net Weight | 6kg |
10L type
| Materials | Tank : Stainless Steel 316 |
|---|---|
| Pipe : PVC | |
| Operating Data | Operating vacuum : -30...-60kPa |
| Minimum operating vacuum : -25kPa | |
| Activating volume : 8.01±10% | |
| Capacity | -50kPa : 2.20L/s; -30 kPa : 1.20 L/s |
| Connections | Outlet/vacuum line : To pipe DN40 |
| Inlet/gravity line : to pipe DN40 | |
| Net Weight | 11kg |

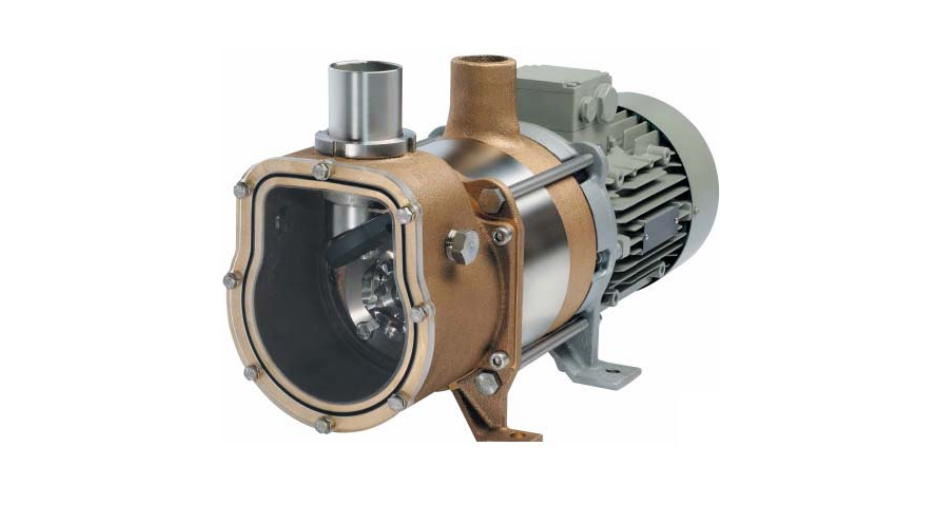

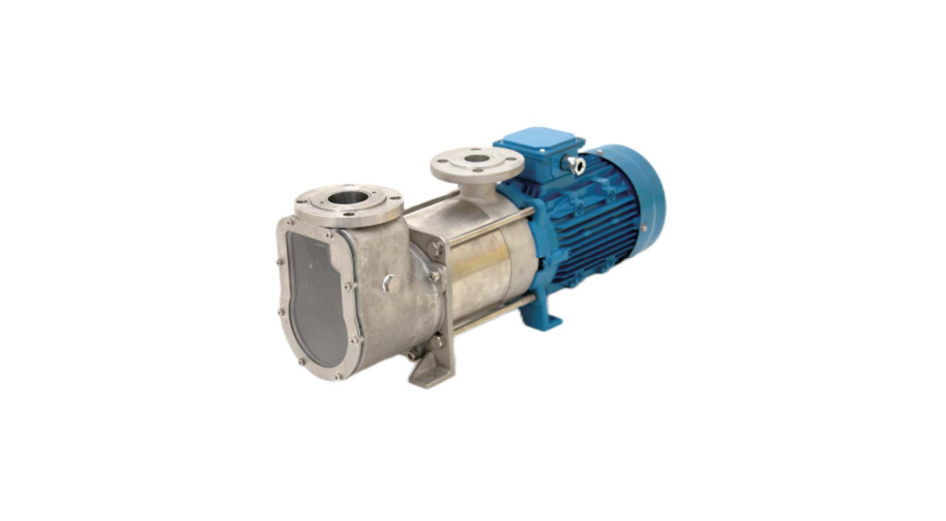

15VMP
| Capacity | Vacuum Capacity : 15m3/h |
|---|---|
| Discharge height:10m | |
| Flushing Capacity at 50/60Hz: 120/150flush/h | |
| Dimension | Outside dimension : 214 x 575 x 274 (W x L x H) |
| Materials | Pump casing : Brozne |
| Shaft/knives : 2CR13 | |
| Electrical | Power connection : 380/440V 50/60Hz |
| Power consumption : 380/440V, 2.2/2.55kW | |
| Current consumption : 4.6/4.75A | |
| Protection class : IP55 | |
| Connection | Connection inlet:⌀50 |
| Connection outlet⌀50 | |
| Net Weight | Motor : 19.5kg |
| Pump : 38kg |
25VMP
| Capacity | Vacuum Capacity : 25m3/h |
|---|---|
| Discharge height:12m | |
| Flushing Capacity at 50/60Hz: 190/240flush/h | |
| Dimension | Outside dimension : 200 x 687.5 x 278.5 (W x L x H) |
| Materials | Pump casing : Stainless steel AISI316 |
| Pump Shaft/knives : 2CR13 | |
| Pump impeller : Brozne | |
| Electrical | Power connection : 380/440V 50/60Hz |
| Power consumption : 380/440V, 3.0/3.45kW | |
| Current consumption : 6.6/6.4A | |
| Protection class : IP55 | |
| Connection | Connection inlet:⌀50 |
| Connection outl et : ⌀32 | |
| Net Weight | Pump : 58kg |
65VMP
| Capacity | Vacuum Capacity : 60m3/h |
|---|---|
| Flushing Capacity at 50/60Hz: 520/600flush/h | |
| Dimension | Outside dimension : 250 x 829.7 x 336 (W x L x H) |
| Materials | Pump casing : Stainless steel AISI316 |
| Pump Shaft/knives : 2CR13 | |
| Pump impeller : Brozne | |
| Electrical | Power connection : 380/440V 50/60Hz |
| Power consumption : 380/440V, 5.5/6.3kW | |
| Current consumption : 10.7/11.2A | |
| Protection class : IP55 | |
| Connection | Connection inlet : DN65 |
| Connection outl et : DN50 | |
| Net Weight | Pump : 100kg |
95VMP
| Capacity | Vacuum Capacity : 93m3/h |
|---|---|
| Flushing Capacity at 50/60Hz: 730/800flush/h | |
| Dimension | Outside dimension : 250 x 836 x 455 (W x L x H) |
| Materials | Pump casing : Stainless steel AISI316 |
| Pump Shaft/knives : 2CR13 | |
| Pump impeller : Brozne | |
| Electrical | Power connection : 380/440V 50/60Hz Power |
| Consumption : 380/440V, 5.5/6.3kW | |
| Current consumption : 11.4/12A | |
| Protection class : IP55 | |
| Connection | Connection inlet : DN65 |
| Connection outl et : DN50 | |
| Net Weight | Pump : 100kg |
